Chinese Manufacturer 4HW 5hw 3 Axis Metal Milling Machine Manual Milling Machine High Quality and Good Price

4HW 5HW

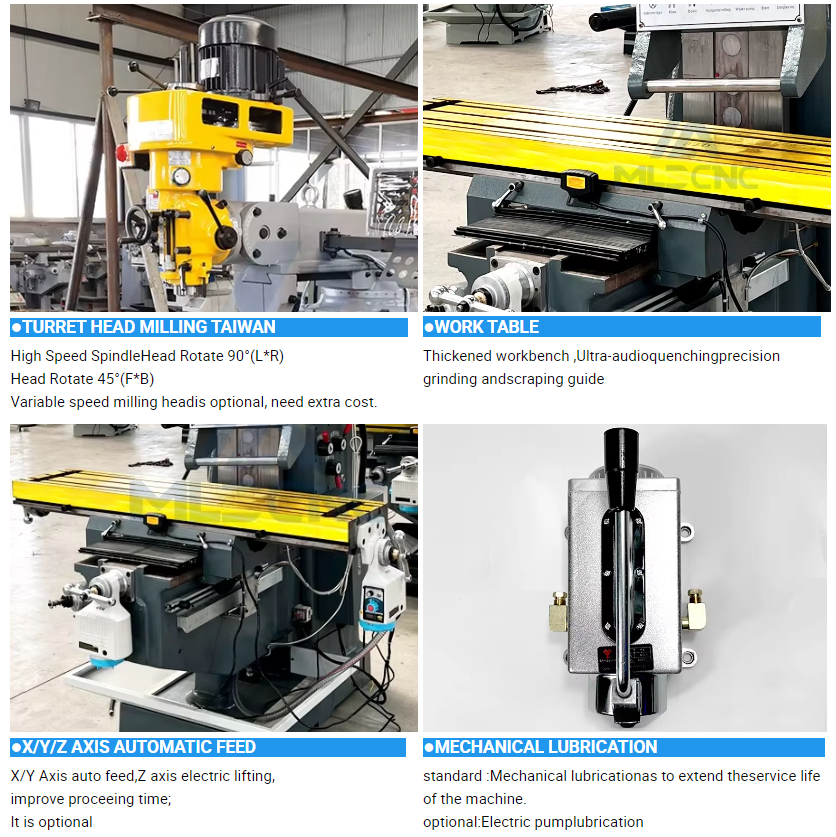

· High Speed Milling Head: Operates at speeds up to 4550 RPM for efficient cutting.
· Hardened Guideways: Ensures smooth and precise movements for extended durability.
· Table Automatic Feed: Provides consistent motion along X, Y, Z axes for accurate machining.
· Medium Duty Spindle: Suitable for heavy-duty applications requiring robust performance.
· Comprehensive Accessories Included: Offers essential tools for setup and maintenance.

Quantity:

Contact Now

Main Feature：

The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter,
milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device

Specifications	Units	4HW	5HW
Table size	mm	1270x254(10”x50”)	1370x305(12”x54”)
Table travel	mm	810/ 400 /400	810/ 400 /400
T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		standard:R8 optional:ISO40
Spindle taper		standard:R8 optional:ISO40
Spindle speed range	rpm	standard:16 steps,50HZ:65-4500 ,60HZ:80-5440，Optional:variable 65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.045,0.086,0.142
Spindle feed range	mm	(3 steps)
Distance between spindle nose and table surface	mm	10-450
Main motor power	kw	2.2
Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	1500	1600
Overall dimension	mm	1450x1650x2250	1550x1650x2250

For more detailed customization plans, please feel free to contact us!
