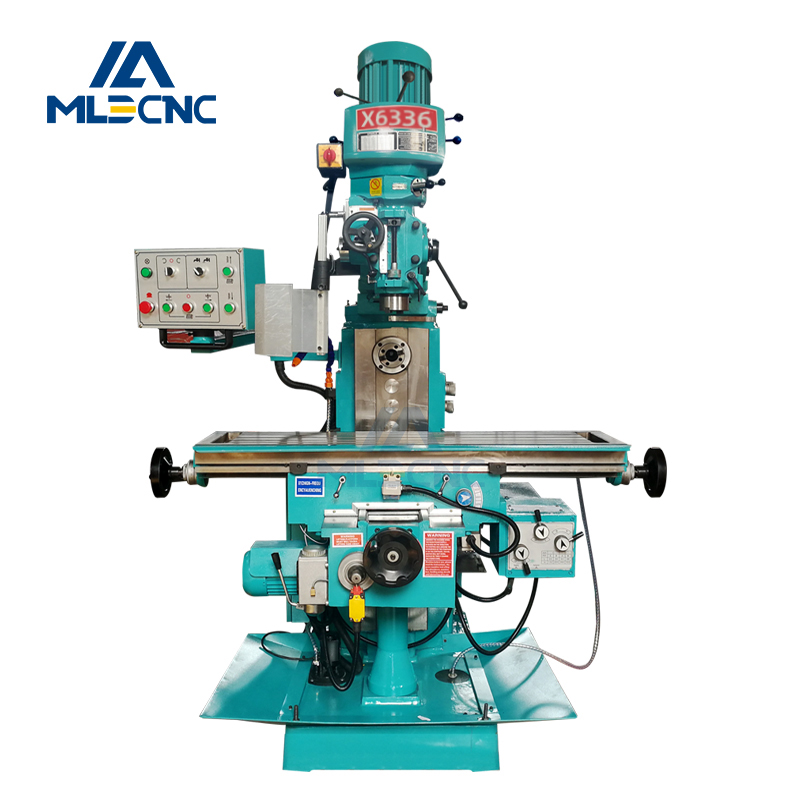

Universal Milling Machine X6336 Radial Head Metal Milling Machine Price

The main performance characteristics：

1. The main components of the base, the body, the working platform, the middle slide seat and the lifting sliding seat are made of
   high strength material, and the stability of the machine tool long-term use is ensured by the artificial aging treatment.
   2. The spindle bearing of the machine tool is a tapered roller bearing. The main shaft adopts three supporting structure. The
   system has good rigidity, strong bearing capacity, and the main shaft adopts energy consumption brake, the braking torque is big,
   and the stop is fast and reliable.
   3. The main drive part and the work table feed part adopts the gear speed change structure, the speed regulation scope is wide,
   the speed change is convenient, quick.
   4. Table of X, y, and Z to have manual feed, mobile feed and maneuver fast forward three, different feed speed, can meet the
   requirements of different processing; fast feed can quickly reach the work piece, the processing position, convenient and rapid
   processing and shorten the processing time.
   5. Table x to travel up to 1000mm, and expand the scope of the machine, y, and Z to guide for the wide rectangular guide rail and
   X, y, Z three direction guide rail vice via ultra audio frequency induction hardening, precision grinding and scraping treatment,
   with forced lubrication, improve the accuracy, prolong the service life of the machine.
   6. Lubricating device for vertical, horizontal and vertical to the screw and guide rail are forced lubrication, reduce the tool
   wear, which guarantees the machine to the efficient functioning of; at the same time, cooling system by adjusting the nozzle
   change the size of the coolant flow, to meet the needs of different processing.
   7. The operating system of the machine tool is hung on the left front of the machine tool through a supporting arm, which is in
   accordance with the principle of human body engineering and is easy to operate. operation panel are using image symbol design,
   simple and intuitive.

Product main technical specification:

Universal milling machine 、
Dimensions	2500x2200x2500mm
Spindle cone	ISO507:24(mountain) / ISO 40 7:24(vertical)
Motor power	5.0/5.5 kw
Supply voltage	380
In Table Size	1600x360mm
Spindle-table distance	180-630mm
T-shaped groove	3-18-80
Spindle pinole stroke	127mm
Table stroke on the Y axis	320mm
Table stroke on the Z axis	450mm
Table stroke on the X axis	1300mm
Vertical Spindle speed	65-4660. 16 rpm
Horizontal rotation speed
Spindle speed	60-1800, 12 rpm
