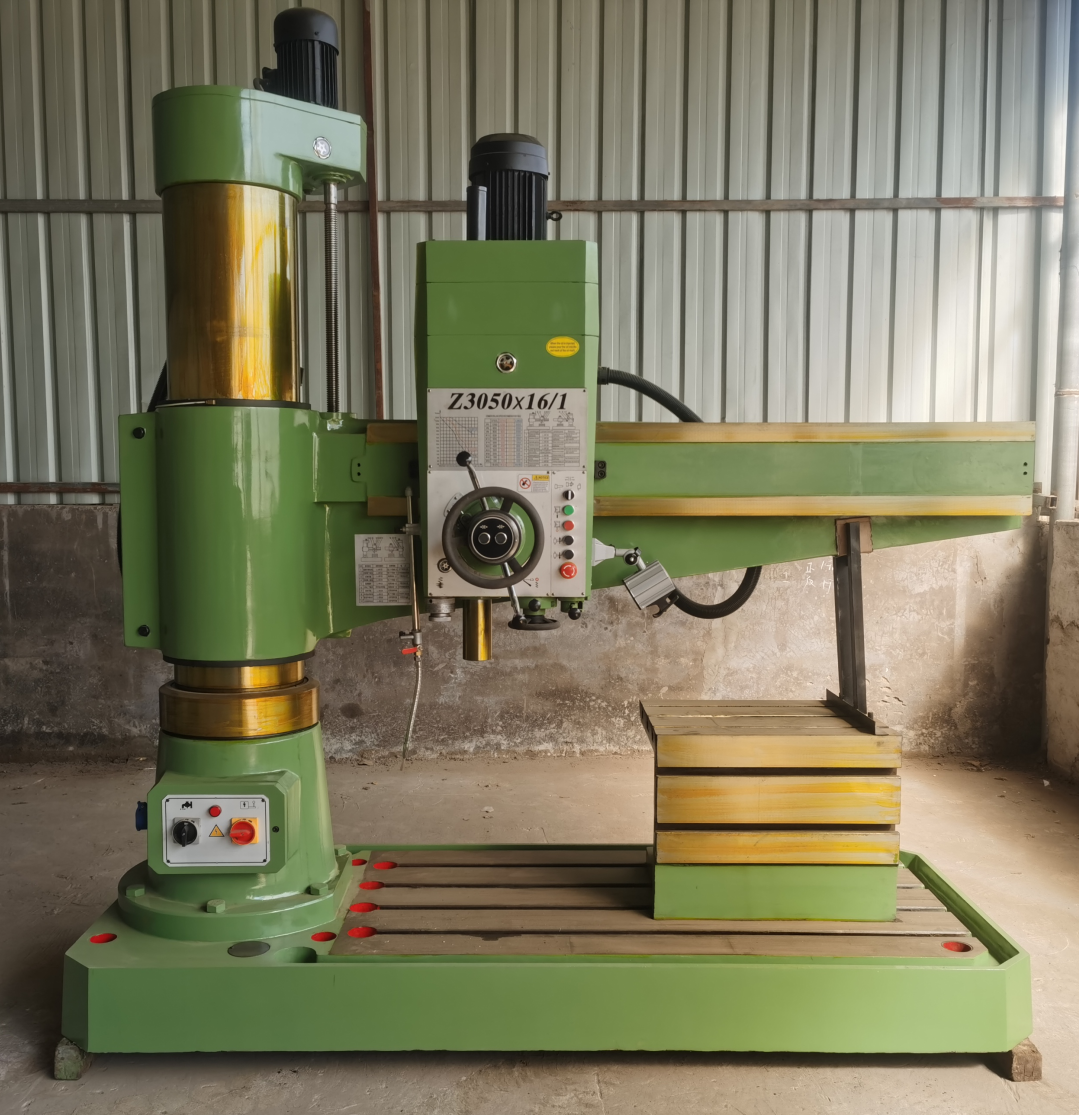

Z3050X16 Radial Drilling Machine

Z3050X16
Quantity:
Contact Now

Radial Drilling Machine

Z3050X16

Max drilling diameter

50mm

Distance from spindle axis to column

350-1600mm

Column diameter

350mm

Spindle cone

MK5

Spindle displacement

315mm

Spindle speed range

25-2000rpm

Number of spindle speeds

16

Spindle feed range

0.04-3.2mm/rpm

Number of spindle feeds

16

Distance from the end of the spindle to the surface of the base desktop

320-1220 mm

Desktop size

630x500x500

Base size

2400x1000x200

Engine power

4kw

Sleeve lifting speed

1.2m/min

Movement of the sleeve on the column

580mm

Dimensions

2500x1060x2650

Weight

3500kg
