Powerful Manufacturer Q1313 Q1319 Q1322 Pipe Threading Lathe Machine Large Hole Diameter Manual Heavy Duty Metal Lathe

Q1313 Q1319 Q1322

Heavy Duty Design: Capable of processing various types of threads including metric, inch, and modulus.
Professional Processing: Equipped with a taper bar for efficient taper thread processing.
Sturdy Construction: One-piece lathe bed ensures steady clamping of pipes.
Comprehensive Accessories: Includes front and rear 3-jaw manual chuck, vertical four-station tool post, and automatic lubrication system.
Wide Range Capabilities: Suitable for pipe threading ranges from 30mm to 510mm.

Quantity:

Contact Now

Features:

Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.

This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Spindle bore range : 130mm-520mm

Threading capacity : 30mm-510mm
Main Features:
* Big spindle bore and double chuck allows clamp and process big diameter pipes;

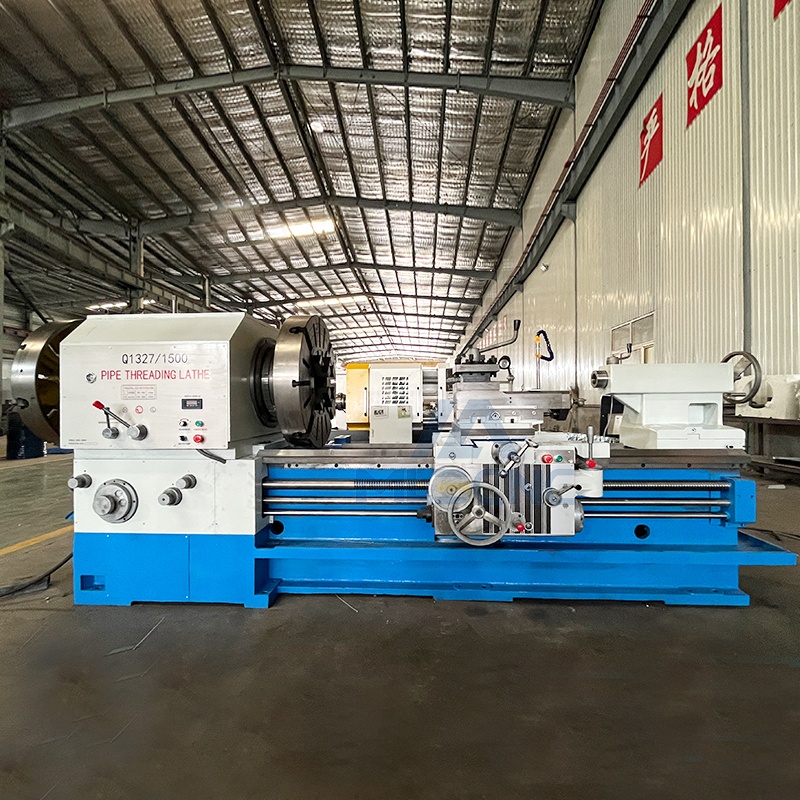

Large-diameter tube thread turning machine

Standard Accessories
1) Front and rear 3-jaw manual chuck.
2) Vertical four-station tool post.
3) With tailstock.
4) Automatic lubrication system.
5) Turning cooling system.
6) Lighting system.7) Taper guide bar
8) Rear support bracket
9) Pad iron etc

Optional Accessories
1) Digital readout.
2) Optional voltage:380V/220V/415V/480V 3phase.
3)Faceplate,
4)Steady Rest, Follow Rest
5)Chasing dial
6)Signal light
7)Protective cover(lead-screw,chuck,tool post)
8)Grinding attachment etc.

SPECIFICATIONS	Units	Q1313	Q1319	Q1322
Swing over bed	mm	630/800	630/800	630/800
Swing over cross slide	mm	340/520	340/520	340/520
Distance between centers	mm	1500/3000	1500/3000	1500/3000
Pipe threading range	mm	30-126	50-193	50-220
Guideway width	mm	550	550	550
Max. load capacity	kg	3000	3000	3000
Spindle bore	mm	130	200	230
Spindle speed steps	-	FWD.18REV.9	/VF. 4 steps	/VF. 4 steps
Spindle speed range	rpm	30-650	20-550	20-550
Chuck	mm	φ400/3-jaw manual	φ520/4-jaw manual	φ520/4-jaw manual
Turret/tool post	-	/Manual 4 position	/Manual 4 position	/Manual 4 position
Tool shank size	mm	30 x 30	32 x 32	32 x 32
X axis travel	mm	320/420	320/420	320/420
Z axis travel	mm	1350/2850	1350/2850	1350/2850
X axis feed steps/range	mm/r	22/0.02-0.45	22/0.02-0.45	22/0.02-0.45
Z axis feed steps/range	mm/r	26/0.07-1.33	26/0.07-1.33	26/0.07-1.33
X axis rapid traverse	mm/min	2300	2300	2300
Z axis rapid traverse	mm/min	4000	4000	4000
Metric thread kinds /range	mm	52/1-24	1-15	1-15
Inch thread kinds /range	T.P.I	40/28-2	14-1	14-1
Tailstock quill diameter	mm	100	100	100
Tailstock quill taper	-	MT5	MT5	MT5
Tailstock quill travel	mm	250	250	250
Main spindle motor	kw	11	11	11
Rapid traverse motor	kw	0.3	0.3	0.3
Coolant pump motor	kw	0.125	0.125	0.125
Weight for 1500	kg	40000	43000	45000
Weight for 3000	kg	52000	55000	57000
Dimension for 1500	mm	3700x1500x1500	3700x1550x1550	3700x1650x1550
Dimension for 3000	mm	5200x1500x1500	5200x1550x1550	5200x1650x1550
