M618 M820 Metal Grinder Machine Precision Flat Surface Grinding Machine
M618 M820
· High Efficiency: Suitable for precision surface grinding tasks.
· Manual Operation: Offers control and customization for various grinding needs.
· Durable Construction: Built for long-lasting performance and reliability.
· Wide Range of Applications: Ideal for grinding stainless steel surfaces.
· Easy Maintenance: Includes mechanical test reports and video factory inspection.
· Manual Operation: Offers control and customization for various grinding needs.
· Durable Construction: Built for long-lasting performance and reliability.
· Wide Range of Applications: Ideal for grinding stainless steel surfaces.
· Easy Maintenance: Includes mechanical test reports and video factory inspection.
Quantity:
Product Description
* The Surface Grinder is reasonable in structure, good rigidity, beautiful appearance, convenient operation.
* The surface grinding machine using precision plastic guide surface and precision scraping, grinding imported hydraulic
transmission, drive by synchronous.
* The hydraulic surface grinder main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control, throttle control. Throttle control part and unloading function. can realize the station start and stop.
* Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
* The surface grinding machine using precision plastic guide surface and precision scraping, grinding imported hydraulic
transmission, drive by synchronous.
* The hydraulic surface grinder main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control, throttle control. Throttle control part and unloading function. can realize the station start and stop.
* Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
Product Parameter
| Specifications | Units | M618A | M820 | |
| Table size (L * W) | mm | 460*180 | 480*200 | |
| Table travel (L * W) | mm | 500*190 | 530*220 | |
| Table T slot (number * width) | mm | 1*14 | 1*14 | |
| Distance spindle center line to table | mm | 335 | 440 | |
| Wheel size (O. D * W * I. D.) | mm | 180*13*31.75 | 200*20*31.75 | |
| Wheel speed 50HZ | r/min | 2850 | 2850 | |
| Wheel speed 60HZ | r/min | 3440 | 3440 | |
| Table longitudinal moving speed | m/min | 3-20 | 3-20 | |
| Table cross feed | Hand feed per rev | mm/rev | 25 | 2.5 |
| Hand feed per gra | mm/gra | 0.02 | 0.02 | |
| Head vertical moving | Hand feed per rev | mm/rev | 1.25 | 1.25 |
| Hand feed per gra | mm/gra | 0.01 | 0.01 | |
| Spindle motor power | kw | 1.1 | 1.1 | |
| Coolant motor power | w | 40 | 40 | |
| Machining surface parallelism | mm | 0.005/300 | 0.005/300 | |
| Surface roughness | um | Ra0.32 | Ra0.32 | |
| Permanent magnetic chuck size | mm | 400*150 | 400*200 | |
| Machine weight | kg | 650/750 | 750/850 | |
| Overall dimension(L * W * H) | mm | 1550*1150*1590 | 1680*1140*1760 | |

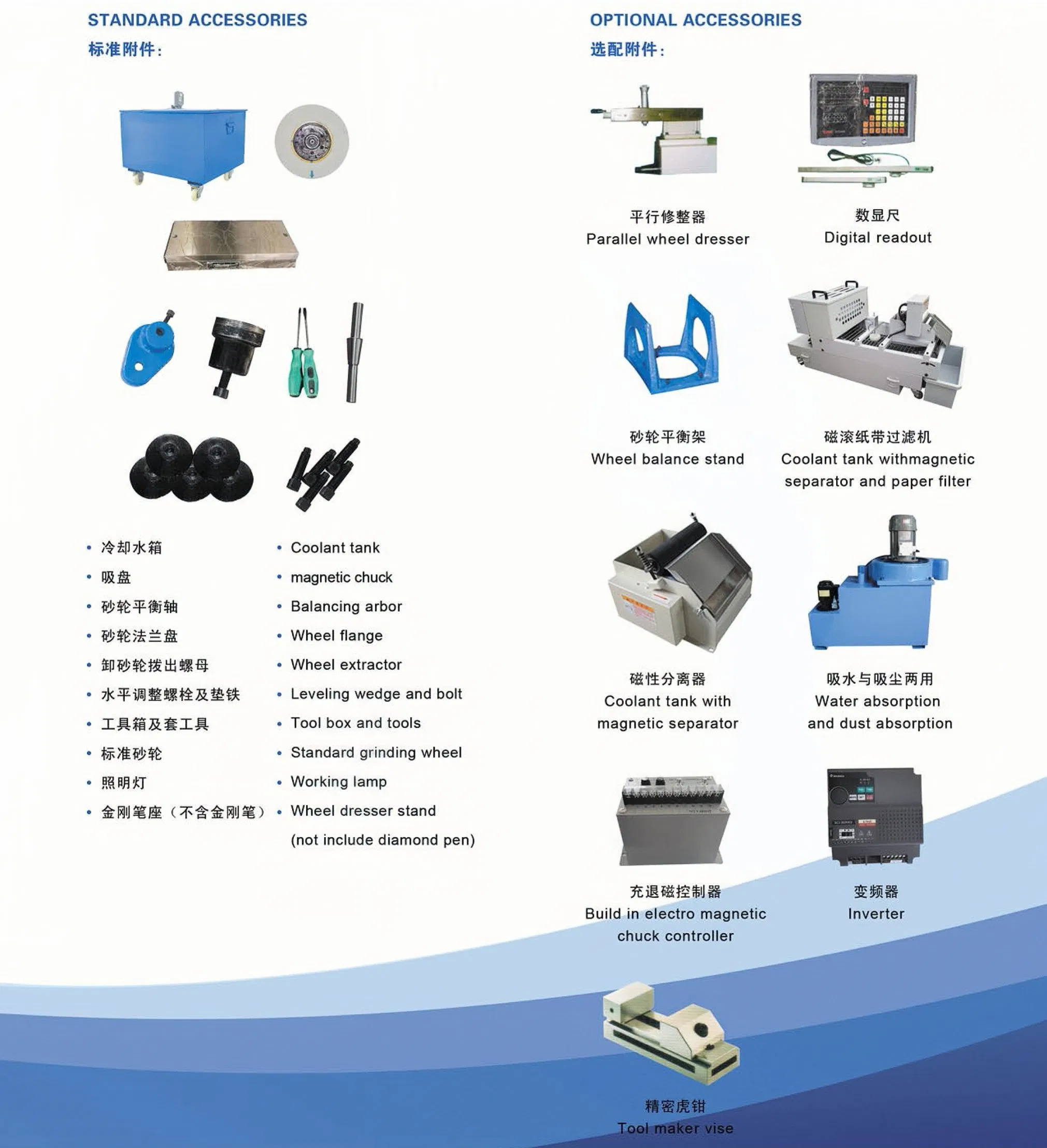

Product Accessories
For more detailed customization plans, please feel free to contact us!
