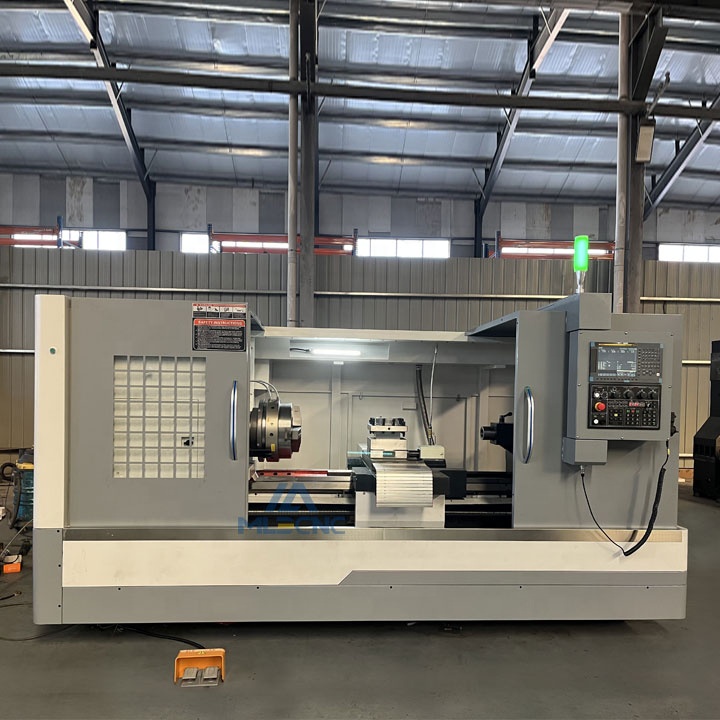

CNC Oil Country Lathe Qk1319 Qk1313 Automatic Pipe Threading Machine
QK1313 QK1319
Large Workpiece Handling: Processes up to 6000 mm in length.
High Precision: Achieves ±0.02 mm positioning accuracy.
Robust Construction: Designed for medium-duty applications.
Compact Design: 600 mm bed width for efficient use of space.
Durable Build: Built with high-quality components for long-term performance.
High Precision: Achieves ±0.02 mm positioning accuracy.
Robust Construction: Designed for medium-duty applications.
Compact Design: 600 mm bed width for efficient use of space.
Durable Build: Built with high-quality components for long-term performance.
Quantity:
The main performance characteristics：
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch,module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod, thread coupling and so on.

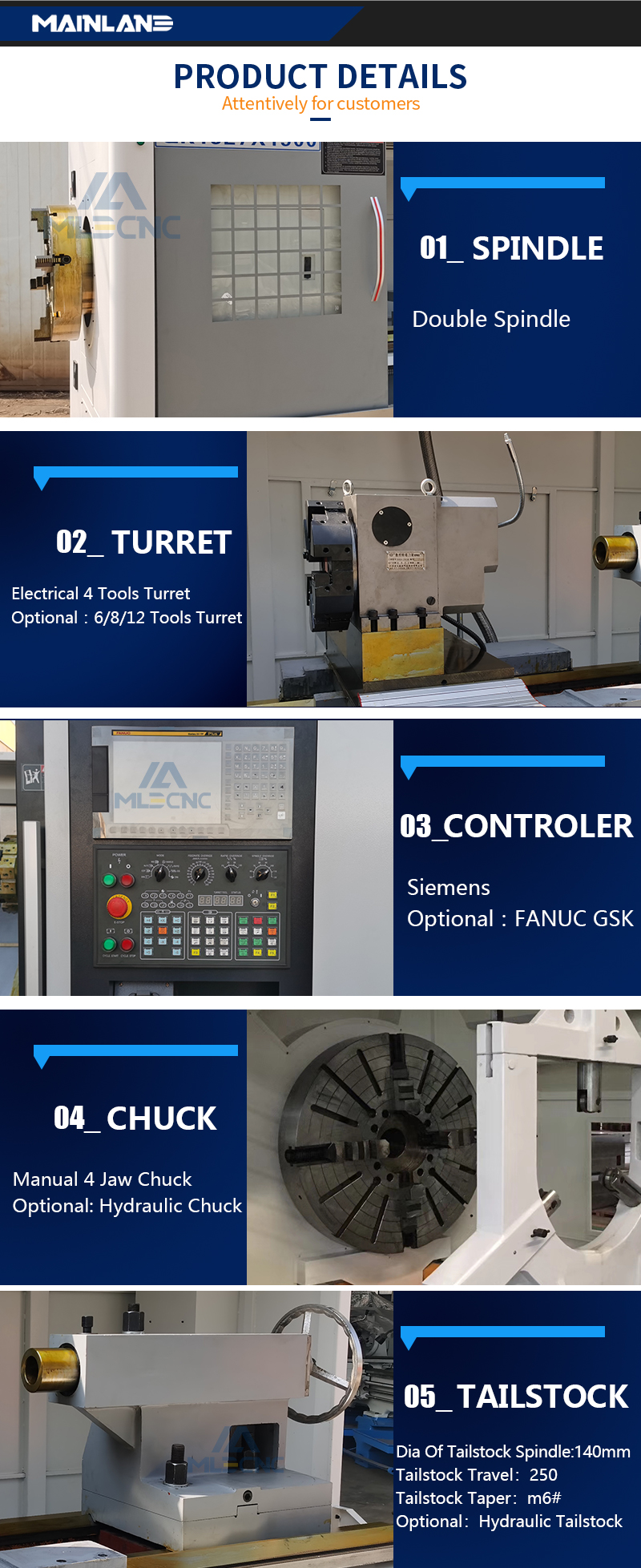

FEATURES
· Big spindle bore and double chuck to ensure process big diameter pipe
· One-piece bed adopts high strength iron to ensure rigidity and precision
· Ultrasonic frequency quenched guide-ways ensure good wear-resistance
· Carriage and guide way
| SPECIFICATION | Units | QK1313 | QK1319 | QK1322 | QK1325 |
| Swing over bed | mm | 630/800 | 630/800 | 630/800 | 800 |
| Swing over cross slide | mm | 340/520 | 340/520 | 340/520 | 480 |
| Distance between centers | mm | 1500/2000/3000 | |||
| Pipe threading range | mm | 30-126 | 50-193 | 50-220 | 120-250 |
| Guideway width | mm | 550 | 550 | 550 | 600 |
| Max. load capacity | T | 3 | 3 | 3 | 4 |
| Spindle bore | mm | 130 | 200 | 225 | 255 |
| Spindle speed steps | - | VF. 3 steps | VF. 4 steps | VF. 4 steps | VF. 4 steps |
| Spindle speed range | rpm | 30-650 | 20-550 | 20-550 | 20-420 |
| Chuck | mm | φ400 | φ500 | φ500 | φ630 |
| 3-jaw manual | 3-jaw manual | 3-jaw manual | 4-jaw manual | ||
| Turret/tool post | - | CNC turret 4 position | CNC turret 4 position | CNC turret 4 position | CNC turret 4 position |
| Tool shank size | mm | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 |
| X axis travel | mm | 320/420 | 320/420 | 320/420 | 420 |
| Z axis travel | mm | 850/1350/2850 | 850/1350/2850 | 850/1350/2850 | 850/1350/2850 |
| X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 |
| Z axis rapid traverse | mm/min | 4000 | 6000 | 6000 | 6000 |
| Tailstock quill diameter | mm | φ100 | φ100 | φ100 | φ120 |
| Tailstock quill taper | - | MT5 | MT5 | MT5 | MT6 |
| Tailstock quill travel | mm | 250 | 250 | 250 | 250 |
| Main spindle motor | kW | 11 | 11 | 11 | 15 |
| Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 |
| Weight for 1500 | kg | 4000 | 5100 | 5200 | 6500 |
| Weight for 3000 | kg | 5200 | 6100 | 6200 | 7500 |
| Standard Accessories: GSK Controller, NC turret 4 position, Coolant system, Lubrication system, Lighting system,, Manual tailstock, Chuck, Rear support bracket, Pad iron | Optional Accessories: Controller ( FANUC, Siemens, GSK,KND), Turret(Servo,hydraulic,power), Chip conveyor, Air conditioner, Full-shield, Hydraulic tailstock,Chuck, Center rest, Follower rest, |
