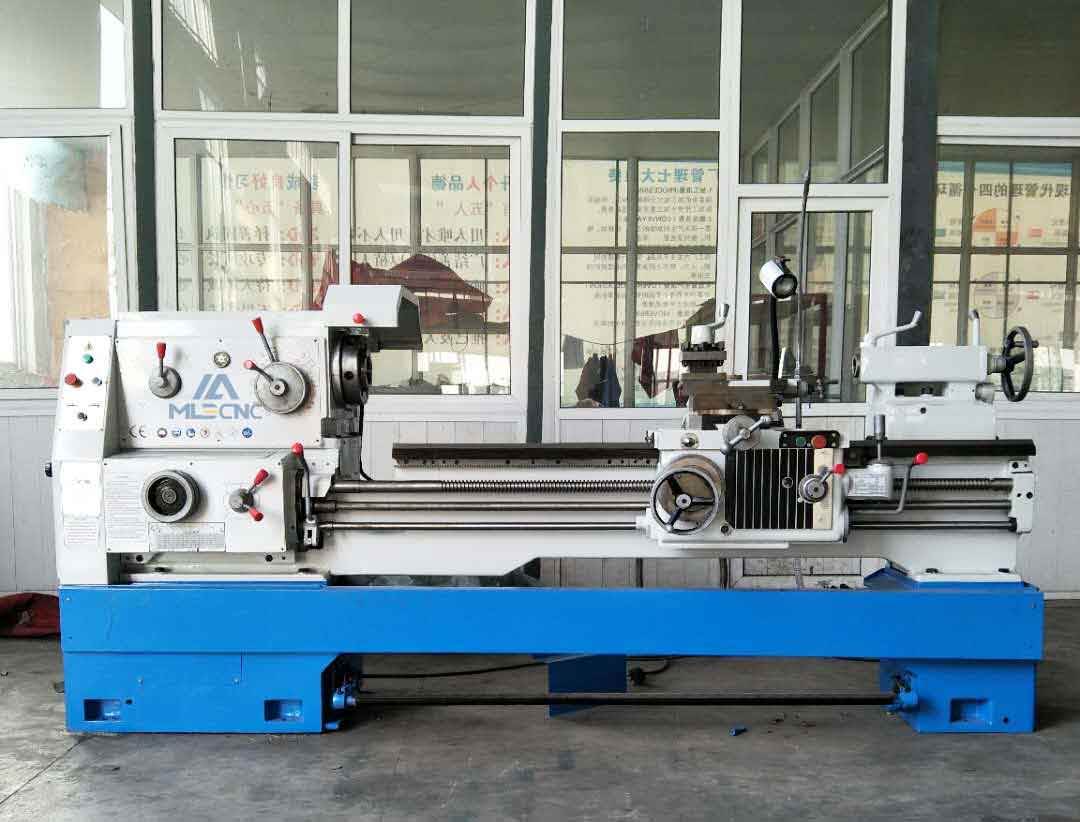

CA6150X1500 Turning Machine

turning machine

CA6150X1500

Turning diameter above the bed

500mm

Max. rotation diameter, gap (removable bridge)

720mm

The diameter of the turning above the transverse support

300mm

The length of the removable bridge

310mm

the distance between the centers

1524mm

the spindle rotation speed is

 12 steps  25 -1800 rpm,

the spindle cone

MK7

Spindle connection

D1-8

Spindle bore

80mm

Longitudinal feed

122 - 0,038 - 2,3 mm/revolutions.

Transverse feed

122 - 0,015 - 0,9 mm/rpm

Metric thread

 24 - 0,5 - 20 mm Inch

Thread

61 -72"- 1 5/8"TPI

Modular Thread

20 -0.25 - 10 MP

Pitch thread

45 - 96 - 3 1/4 DP

Max. cutter size

25 x25 mm

Stroke of the transverse caliper

228 mm

Stroke of the upper caliper

130 mm

Accelerated longitudinal movement of the caliper (RFS) -

5 m/min

Tailstock pinole

MK-5

Tailstock pinole stroke

124mm

 Working diameter of the fixed rest

12 - 178 mm

Working diameter of the movable rest

15 - 90 mm

Distance between the guides

340 mm

Output power

7.5kw

Power consumption

8.8 kW / S6 40%

Overall dimensions (LxWxH)

2960x1016x1241mm

Machine weight

3000kgs
